Ashianeh

Img 5942 Hdr.1
Location
Lavasan | Tehran
Year
2021
Area
720 sqm
Category
Construction
Type
Villa
Status
Completed
Client
Private
Architecture: Alireza Sherafati | Pantea Eslami | Shabnam Azmoodeh
Project Management: Amir Mokabber
Construction: Raahro Studio
Design Team: Razie Shoaei | Negar Saadat | Shiva Sabzevari | Hamed Naji
Construction Supervisor: Amir Mokabber | Vahid Nejhad Fallah | Pegah Asadani | Peyman Yeganeh | Pejhman Selki
Structural Design: Ali Sheikhi
Mechanical Consultant: Ali Ghanaizadeh
Electrical Consultant: Ali Piltan
Photographer: Parham Taghiyof | Mohammad hassan Ettefagh
Graphic: Rozan studio

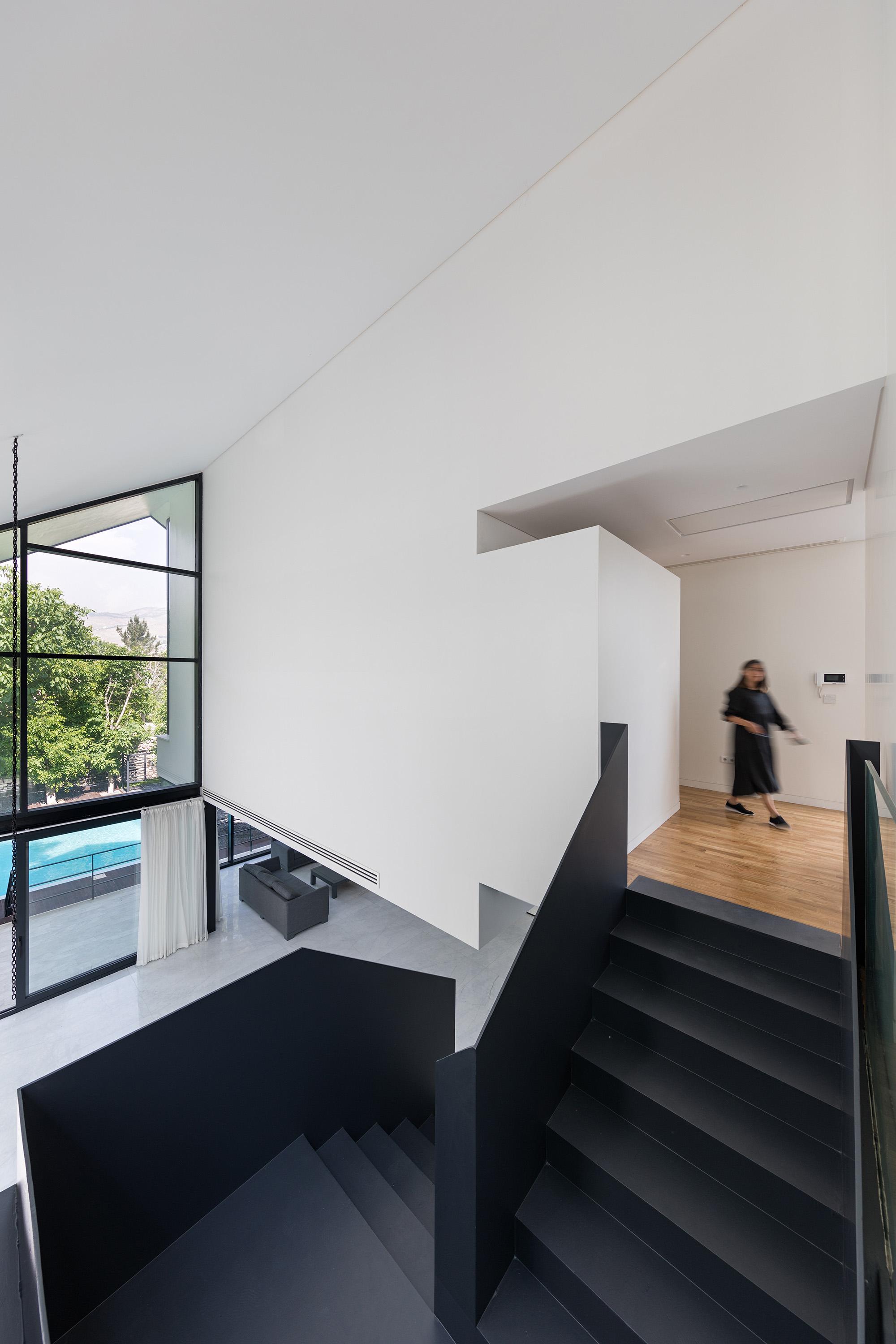

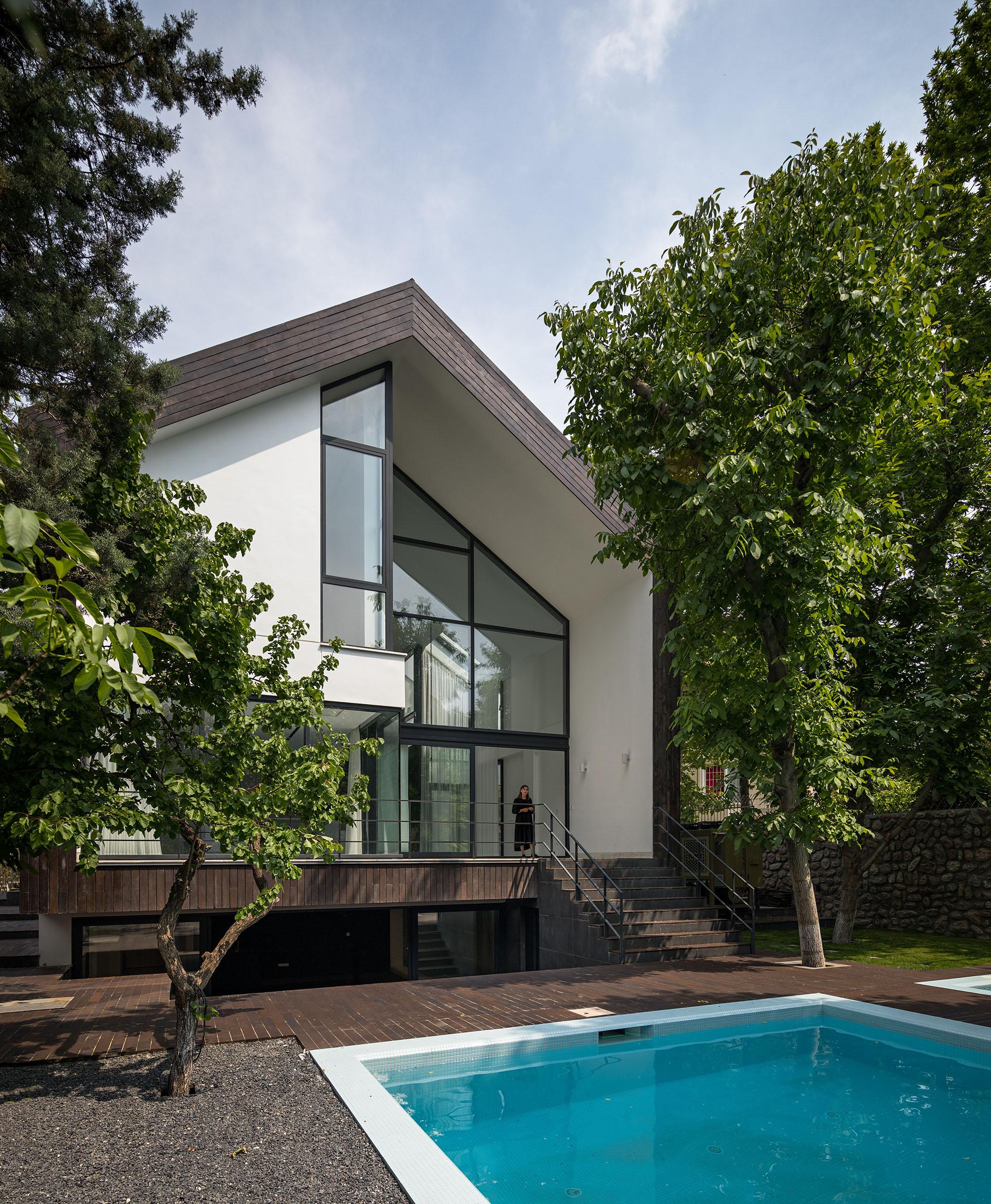

The "Ashiane Villa" project began in 2019 with the design by "Arsh,4D studio" and the execution by the Design Studio Raahro. This project involved demolition and reconstruction on a 1000-square-meter plot of land located in Lavasan city.

The project highlights the importance of technical and executional aspects such as:

  • Implementing foundations with varying levels.

  • Constructing a composite metal structure using welded joints on two levels, ground and first floor, and bolt and nut connections at the roof level, due to its suspended nature from the second floor.

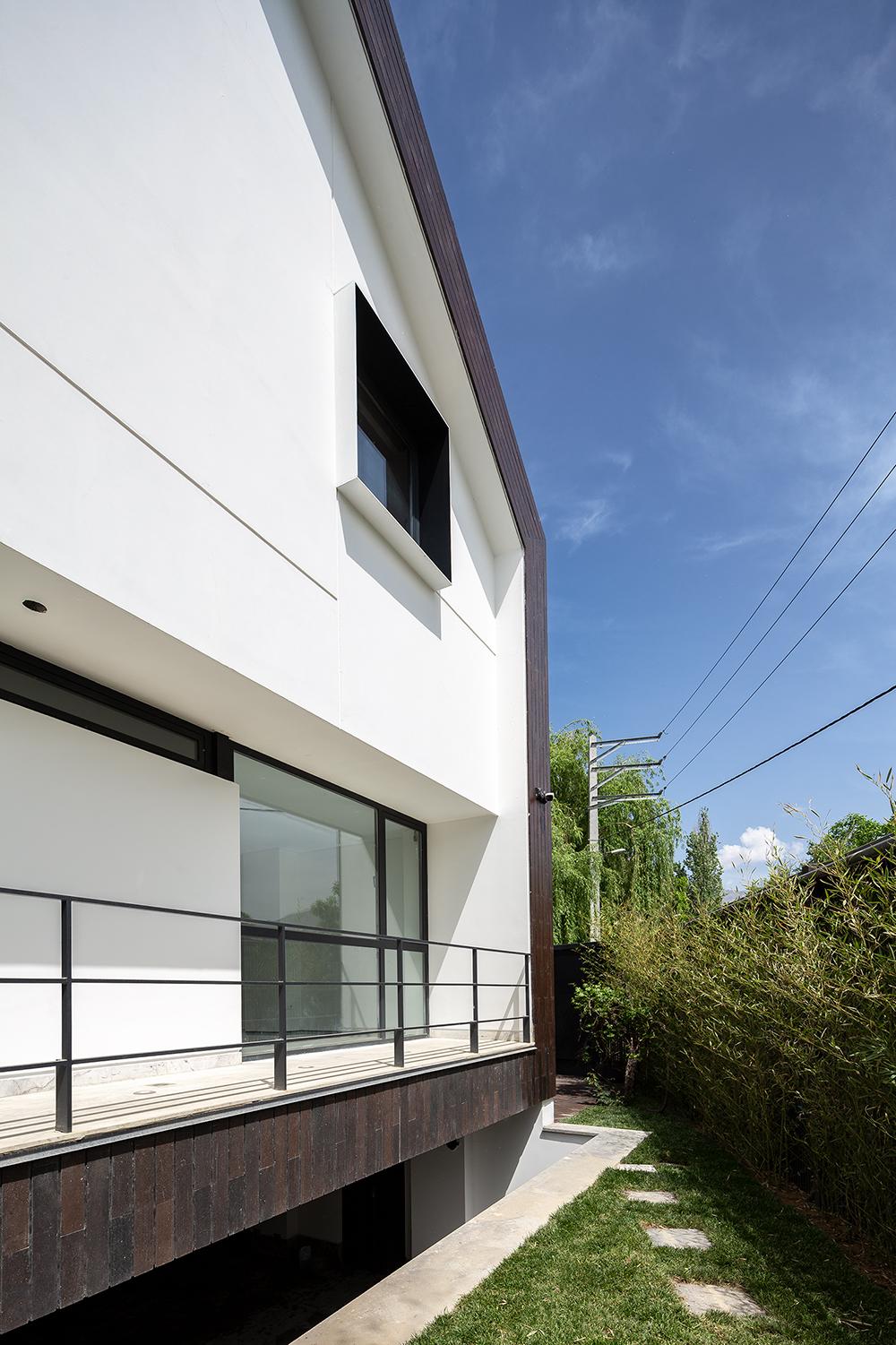

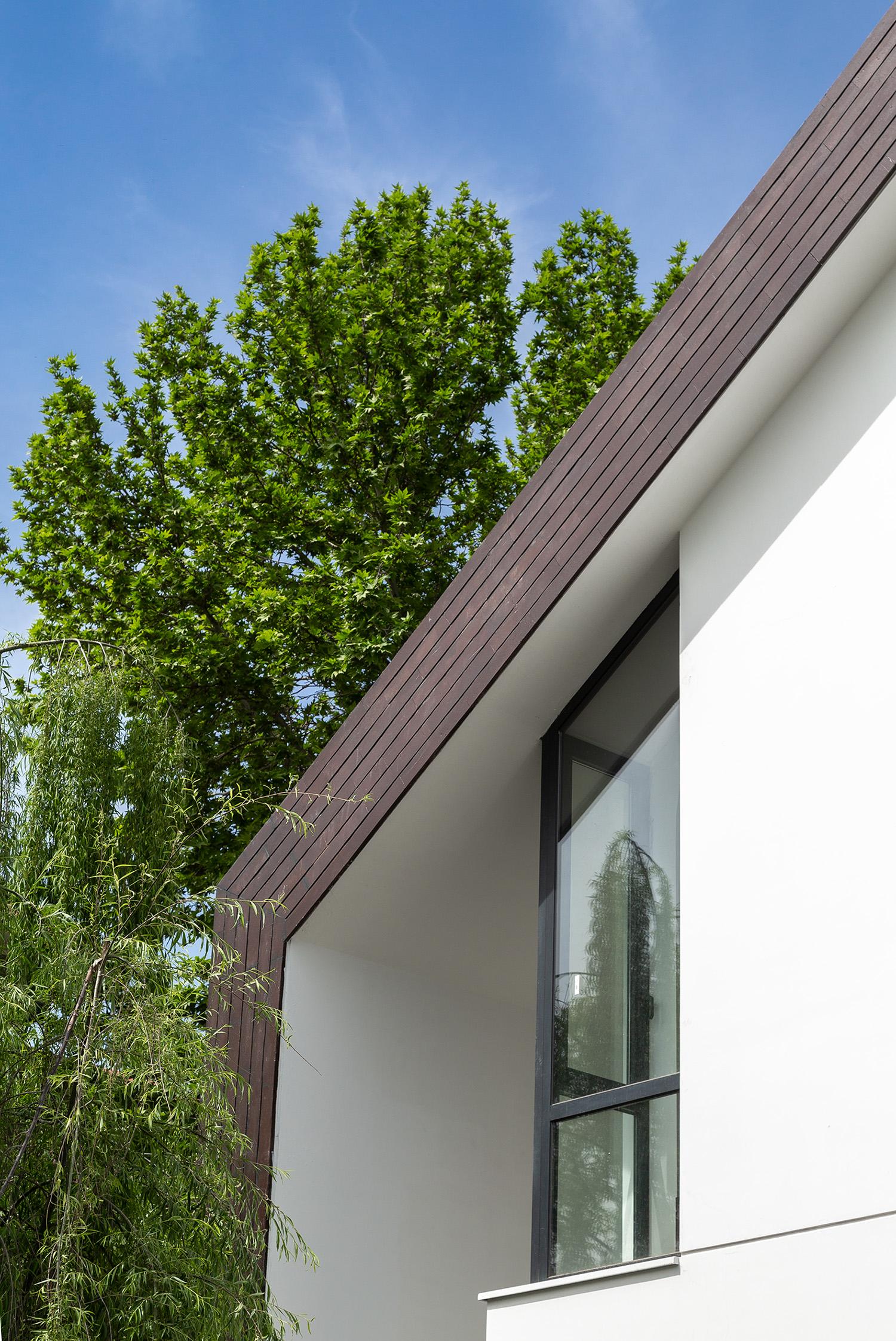

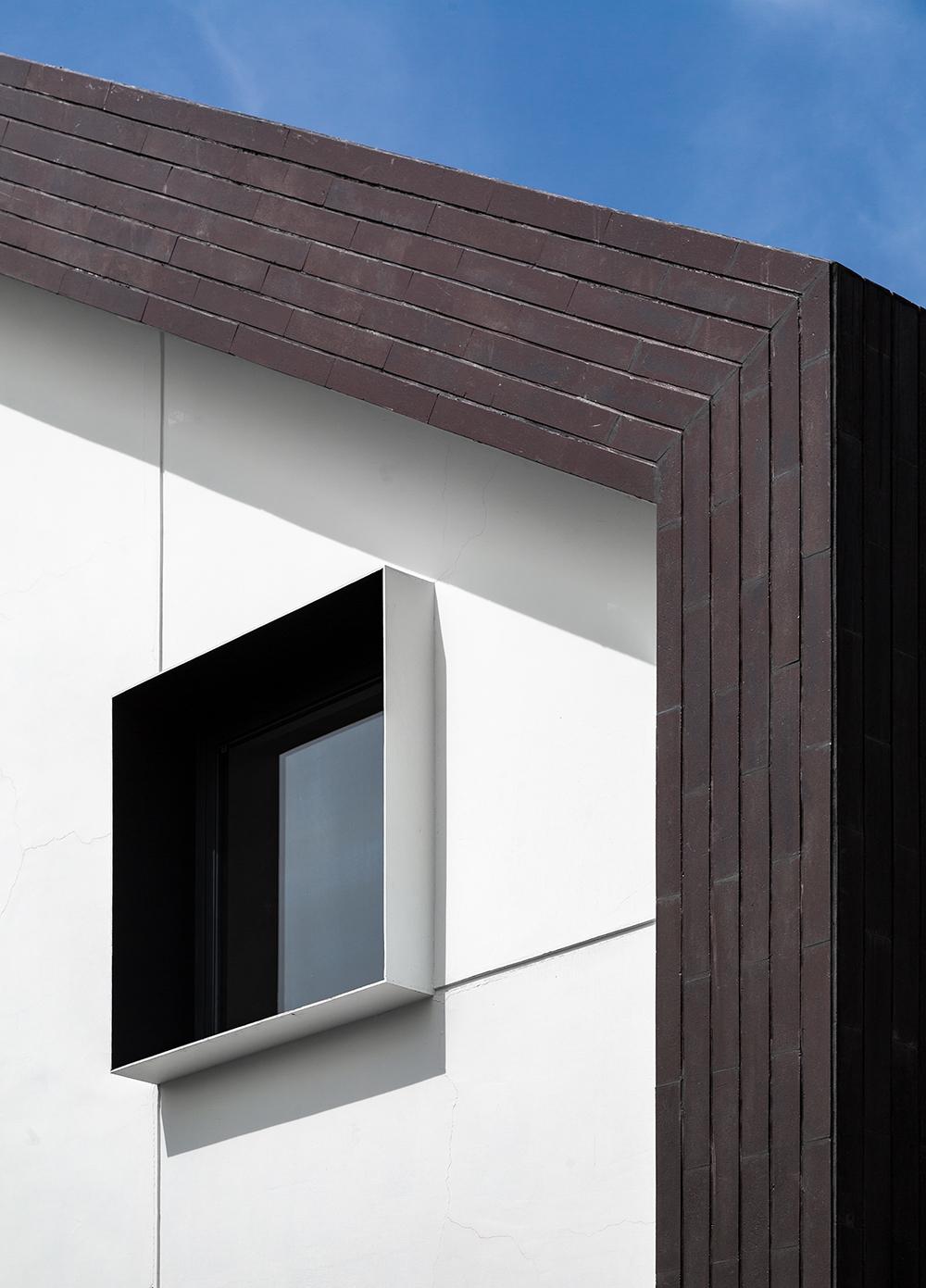

  • The seamless integration of the facade's shell on the east, west, south, and north sides of the building, requiring the project executor to adhere to minimal discrepancies between the blueprint and the execution.

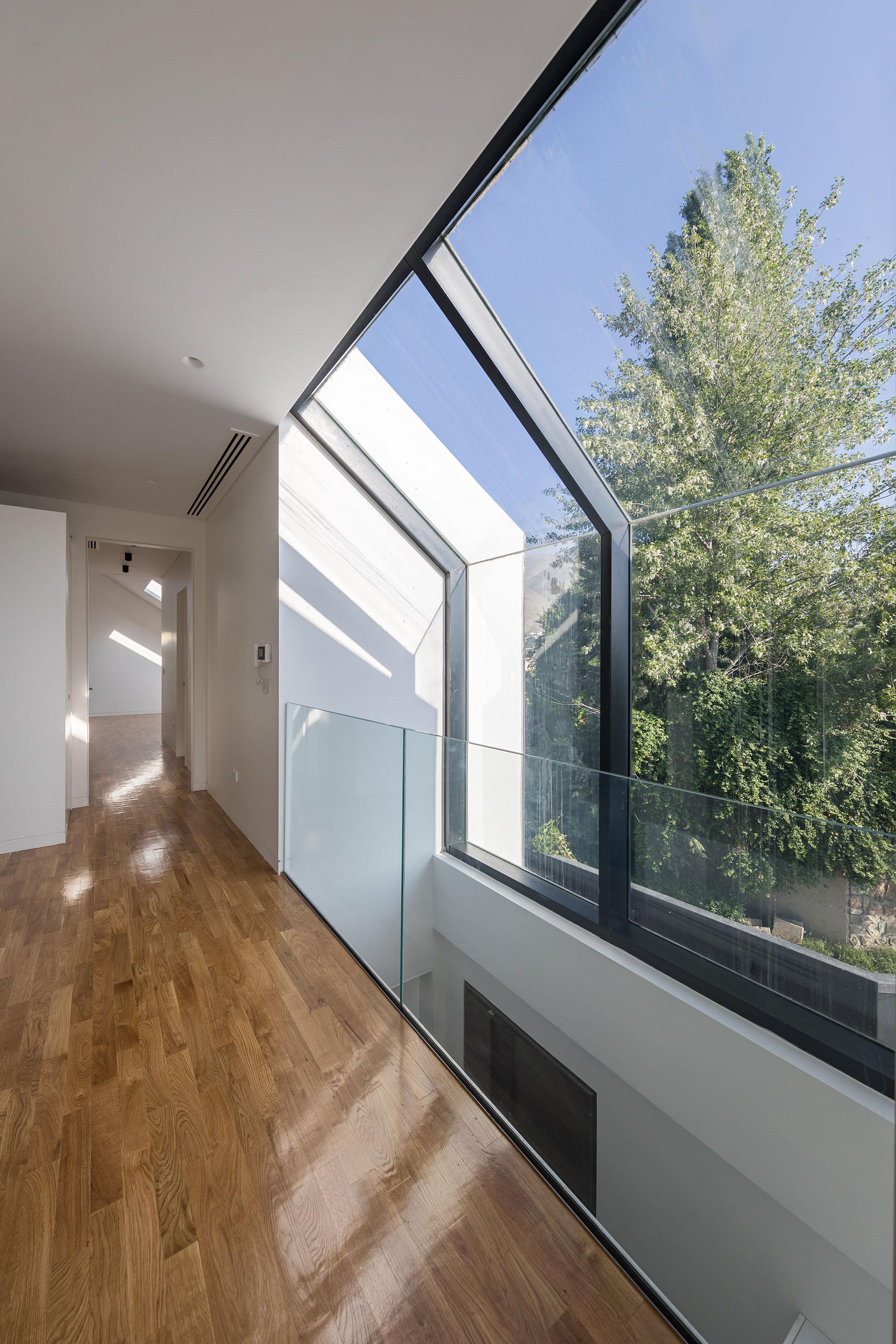

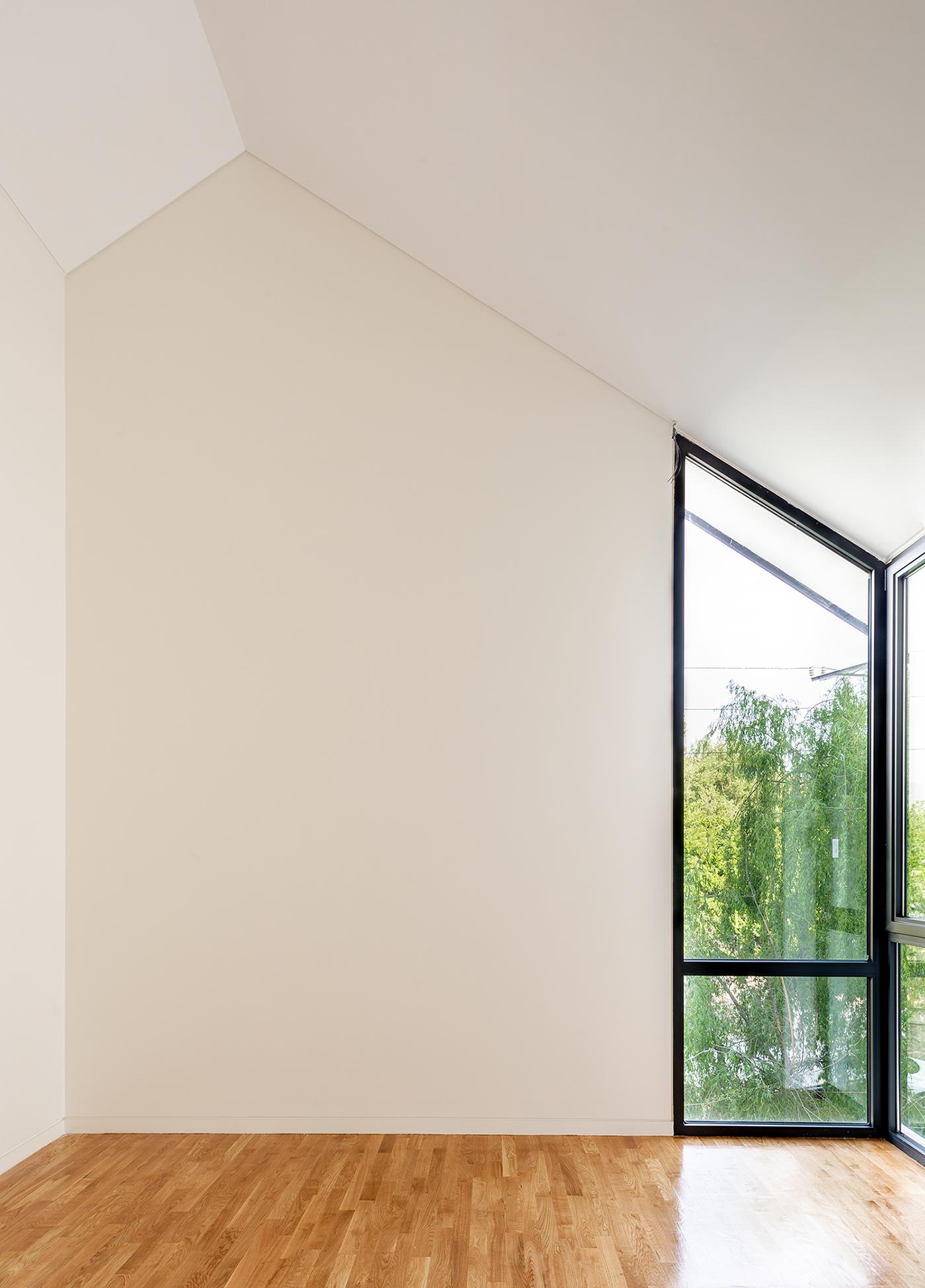

Consequently, other executive requirements included maintaining inclines in all spaces on the second floor and coordinating the sloped gypsum ceiling with the sloped cement facade, while ensuring precise alignment in all directions. It's worth mentioning that the difference between the blueprint and execution in this project was less than one centimeter.

Additionally, other executive points include installing concealed gutters behind the roof intermittently (due to roof beam casting) at a lower level than the completed facade material.

۵

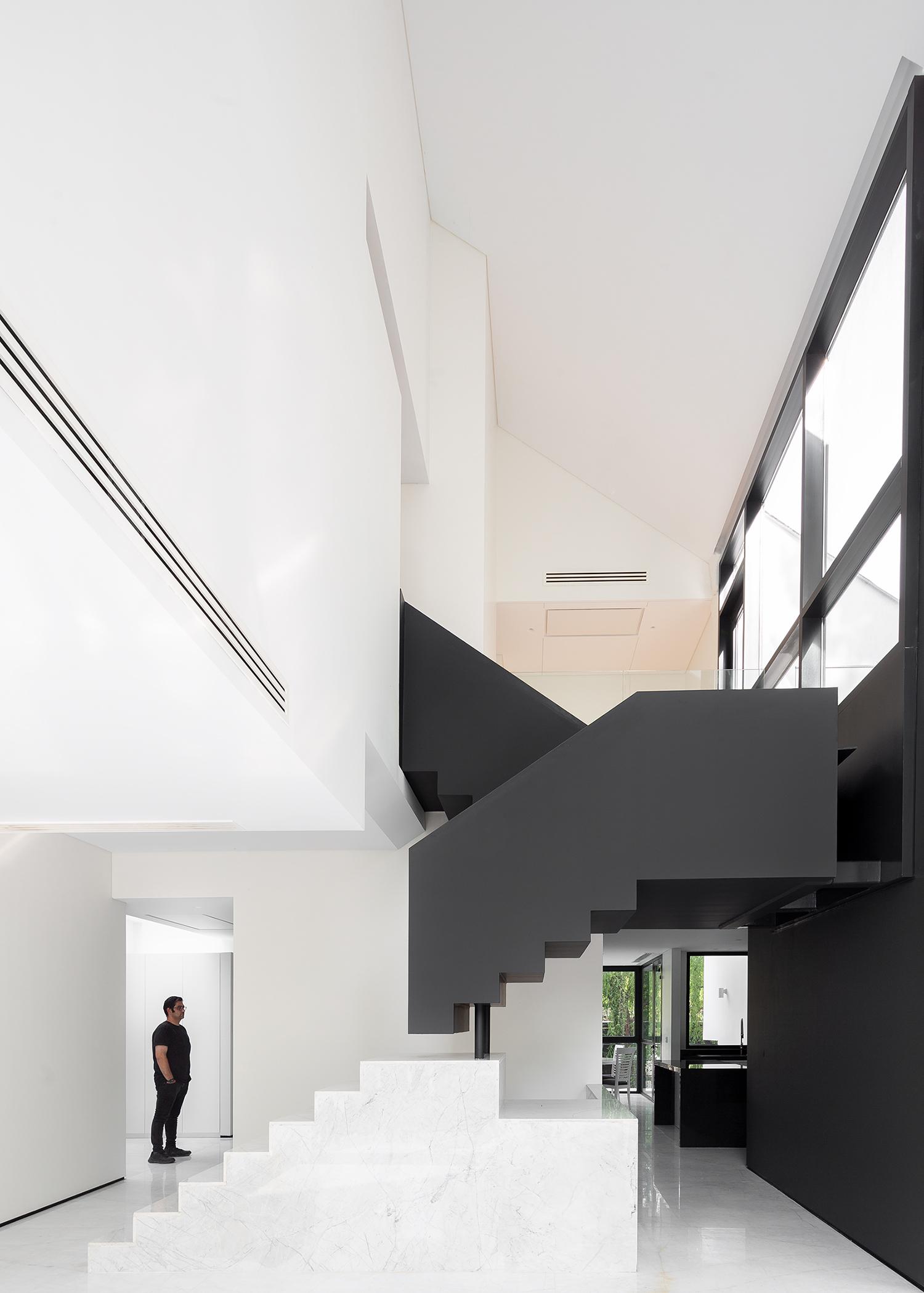

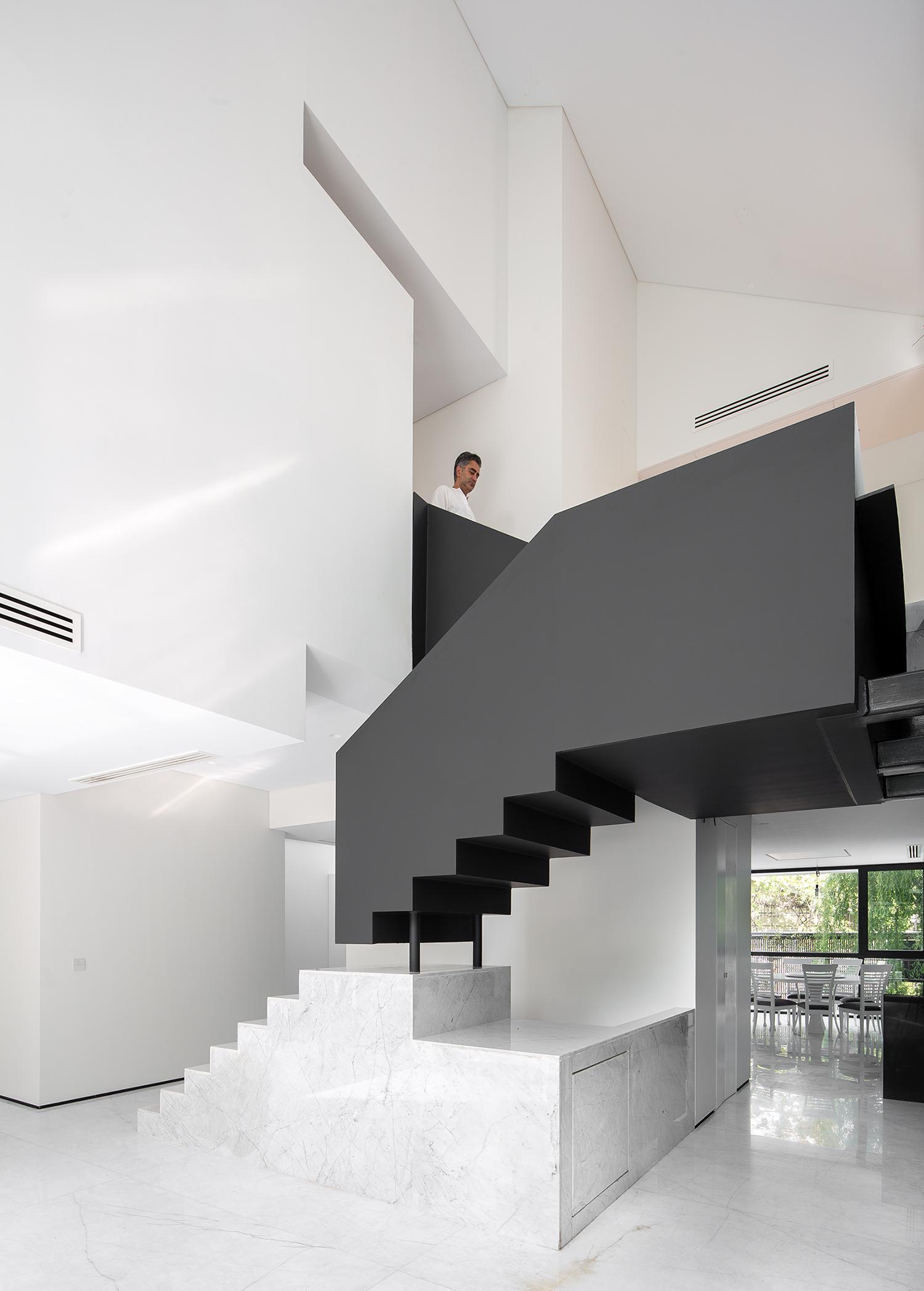

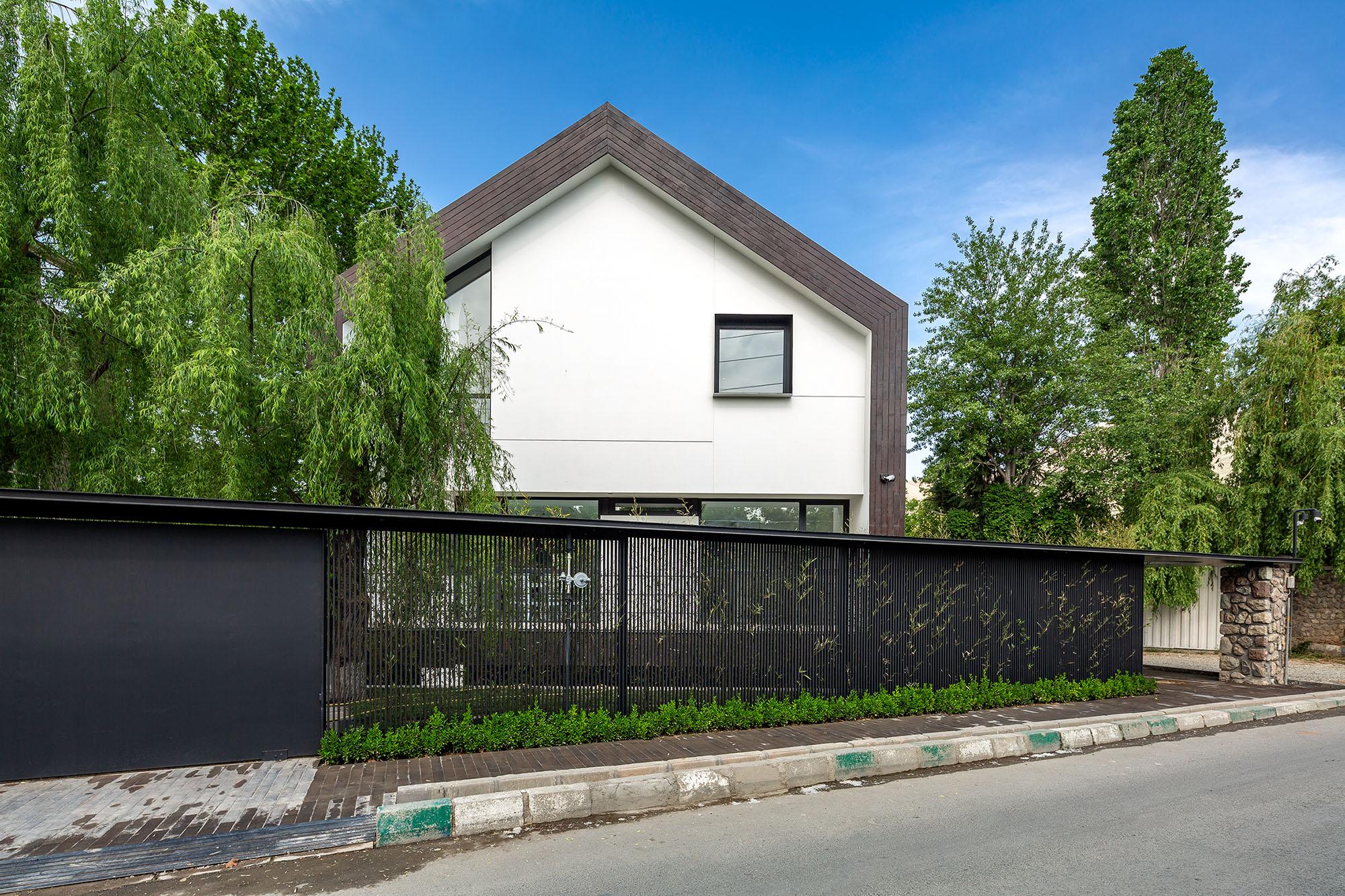

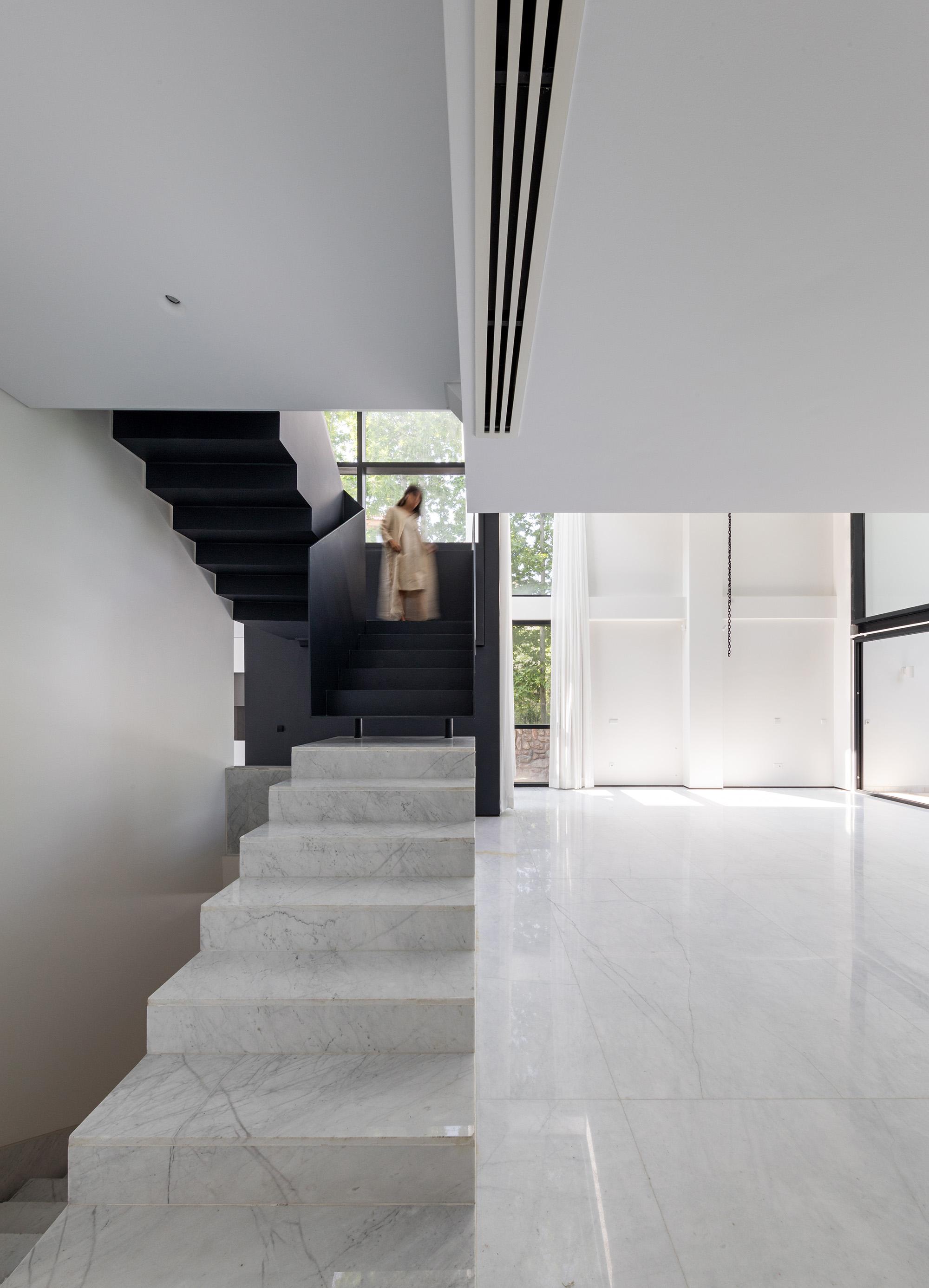

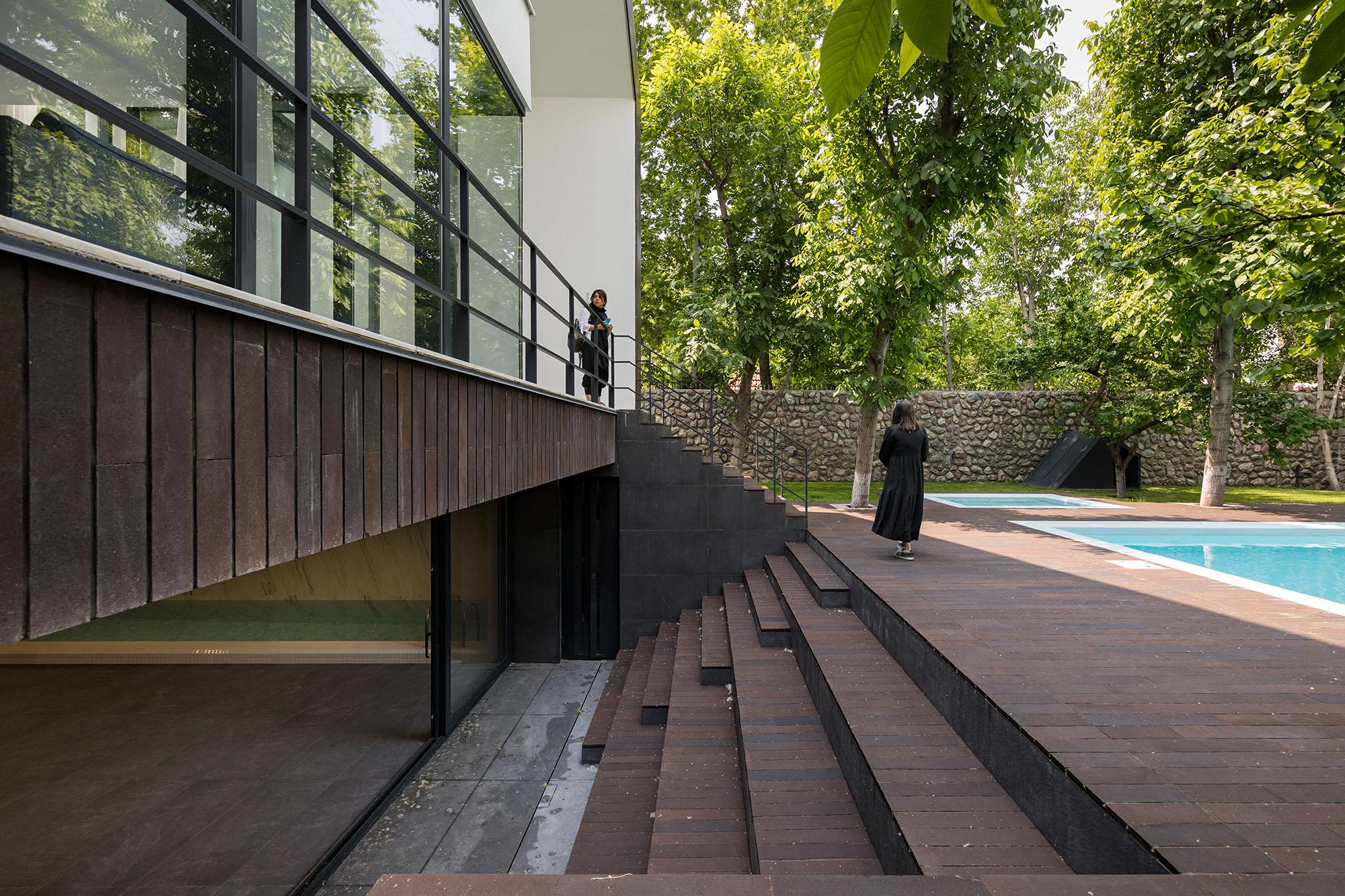

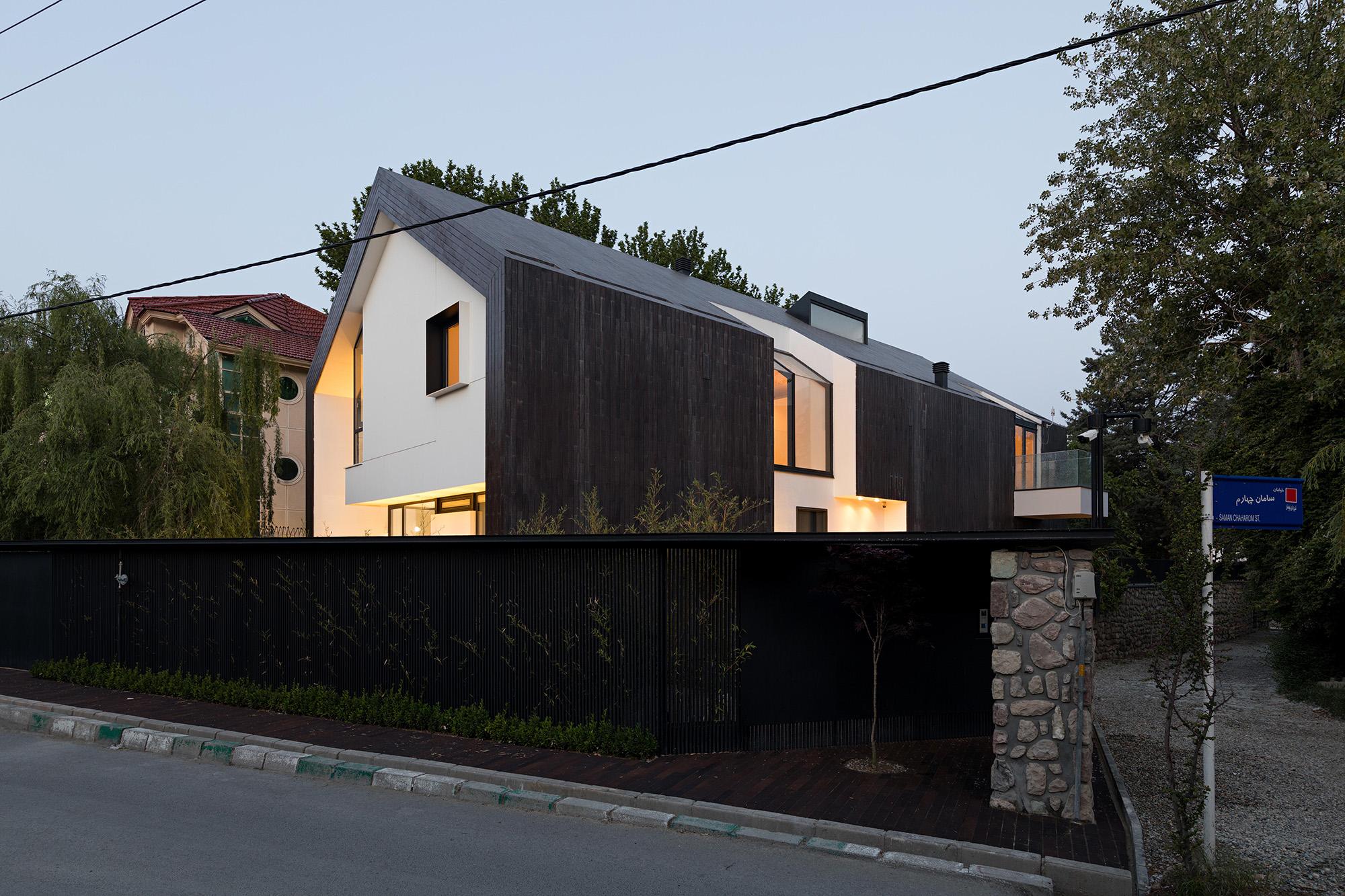

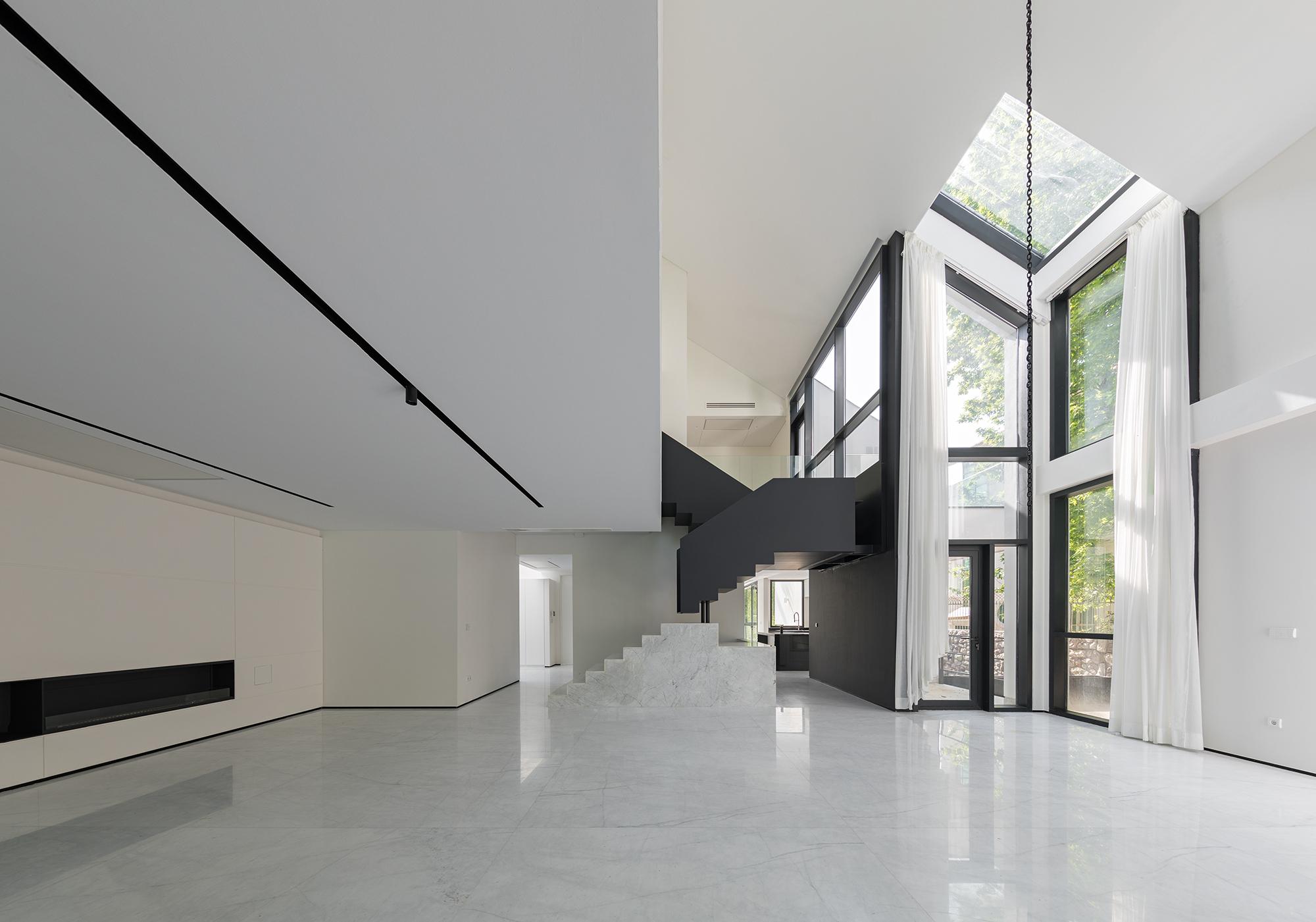

Img 5976low.5
19
17
10
Img 6212 Hdr Pano.16
Img 6795.60
Img 5993 Hdr Pano.6
Img 6411.24
Img 6518.30
Img 6305 Hdr.20
15
Img 6270.19
14
11
7
1
2
6
22
Img 6124 Pano.8
Img 6137 Hdr.9
13
Img 6685.44
18
Img 6623 Hdr.39
Img 6461.27

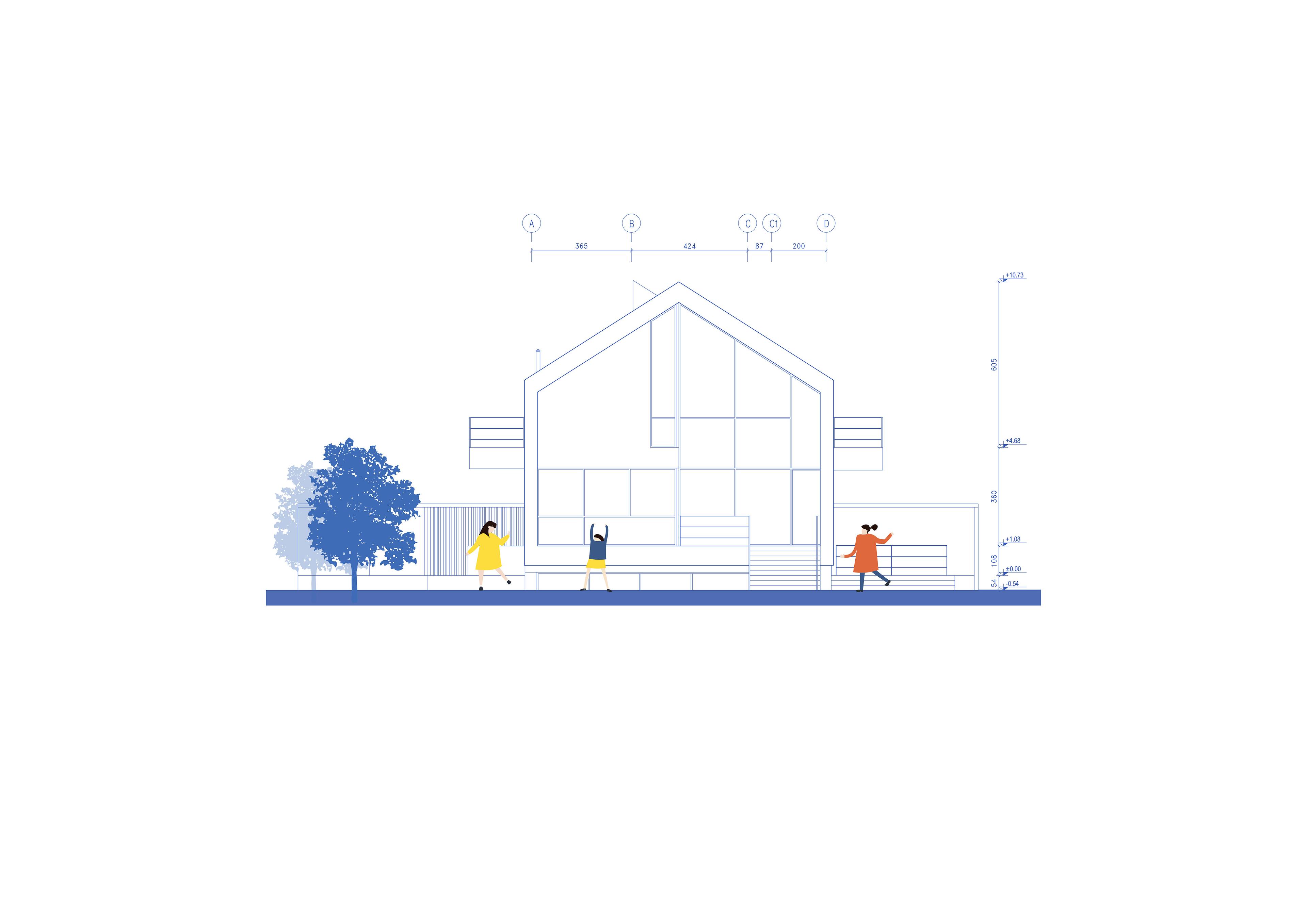

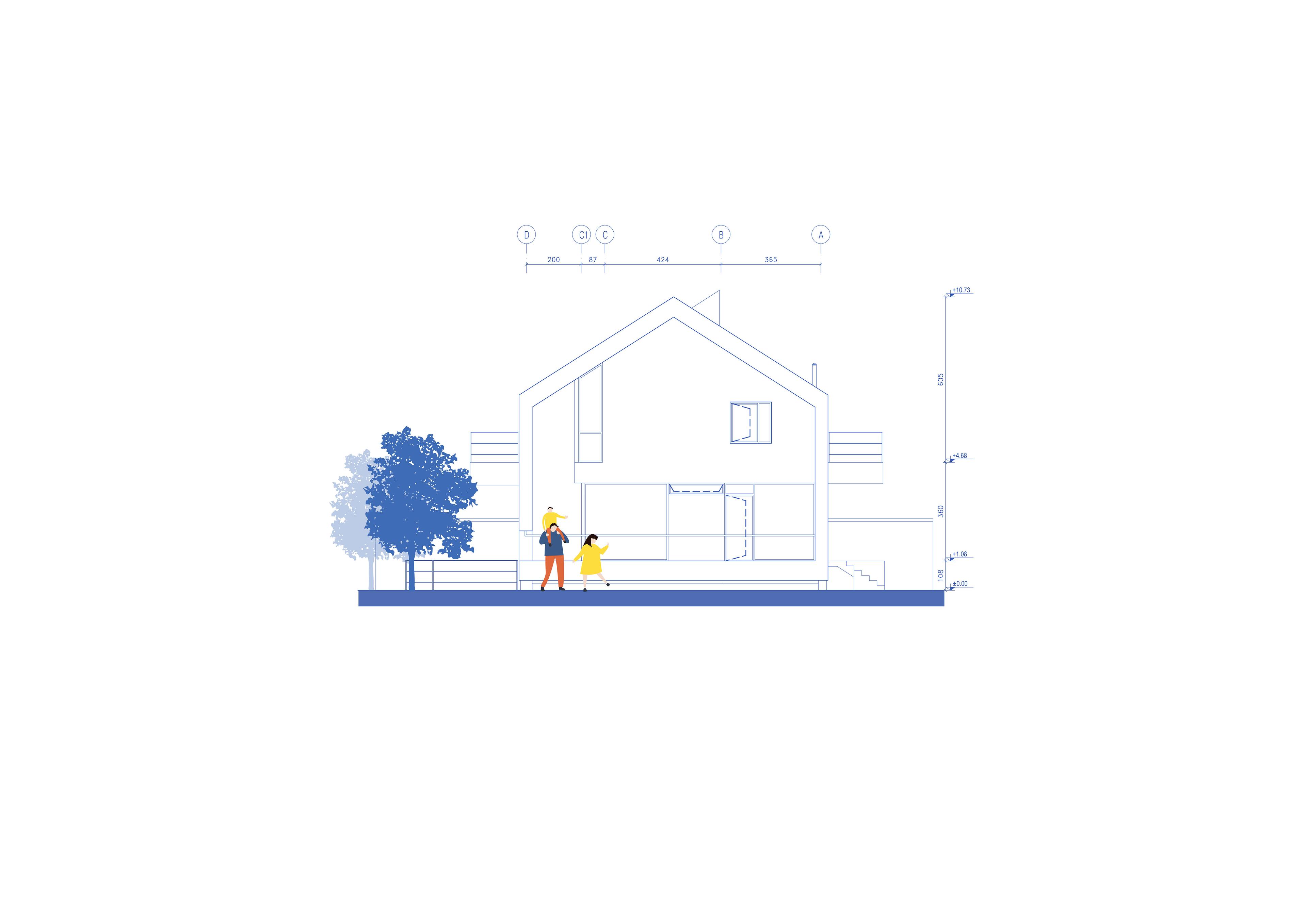

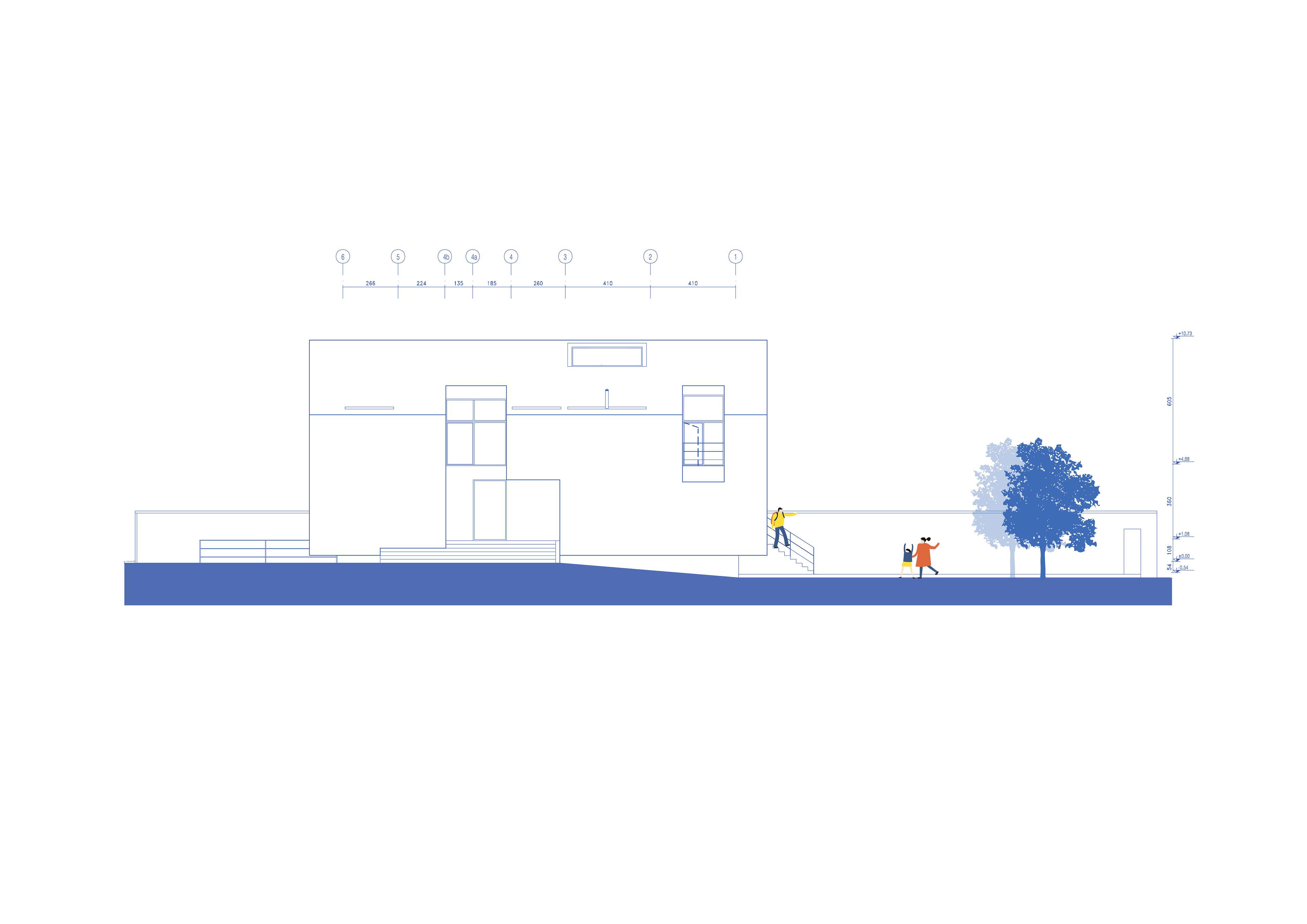

East Elevation.re
Sout Elevation.re

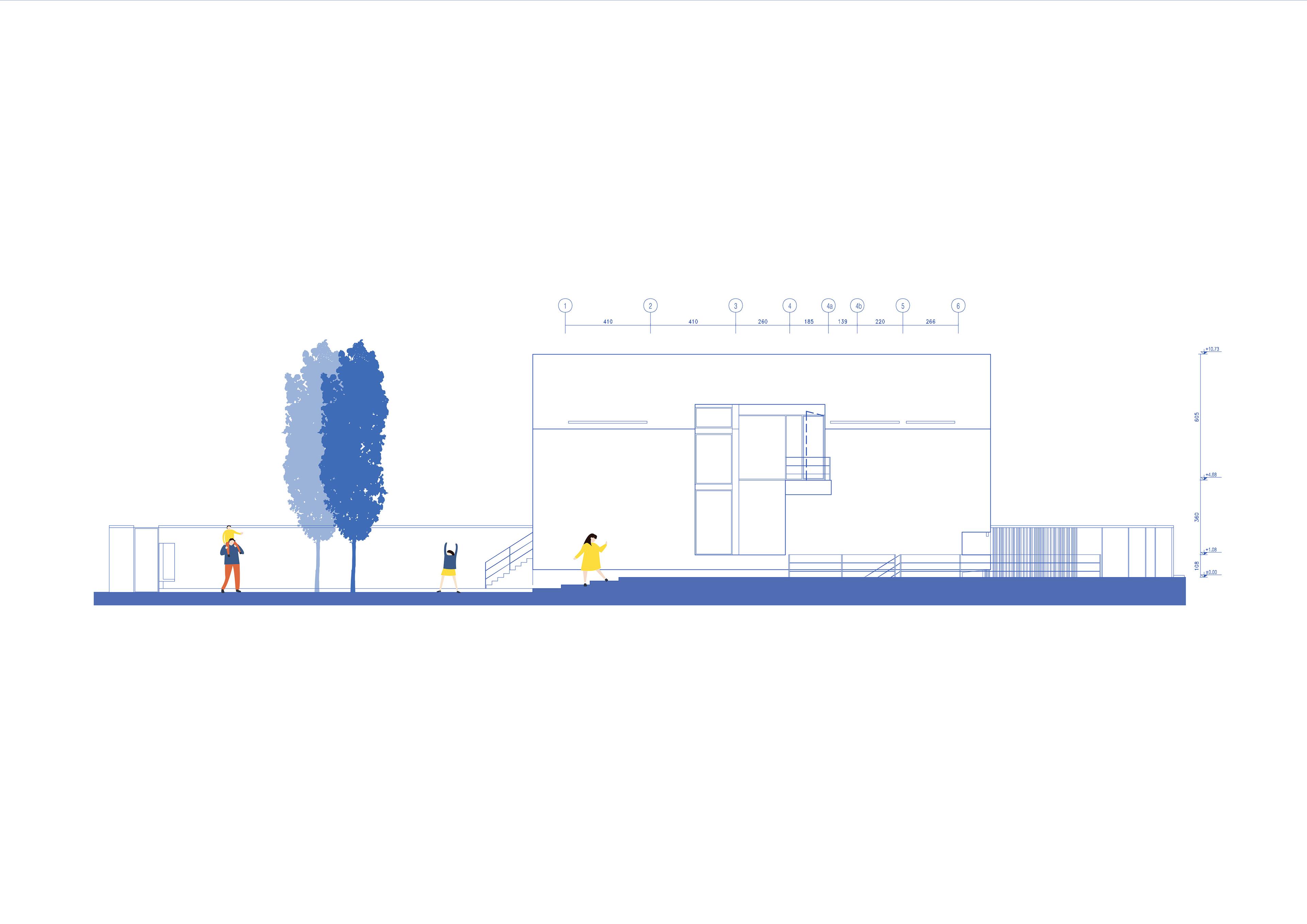

West Elevation.re
North Elevation.re

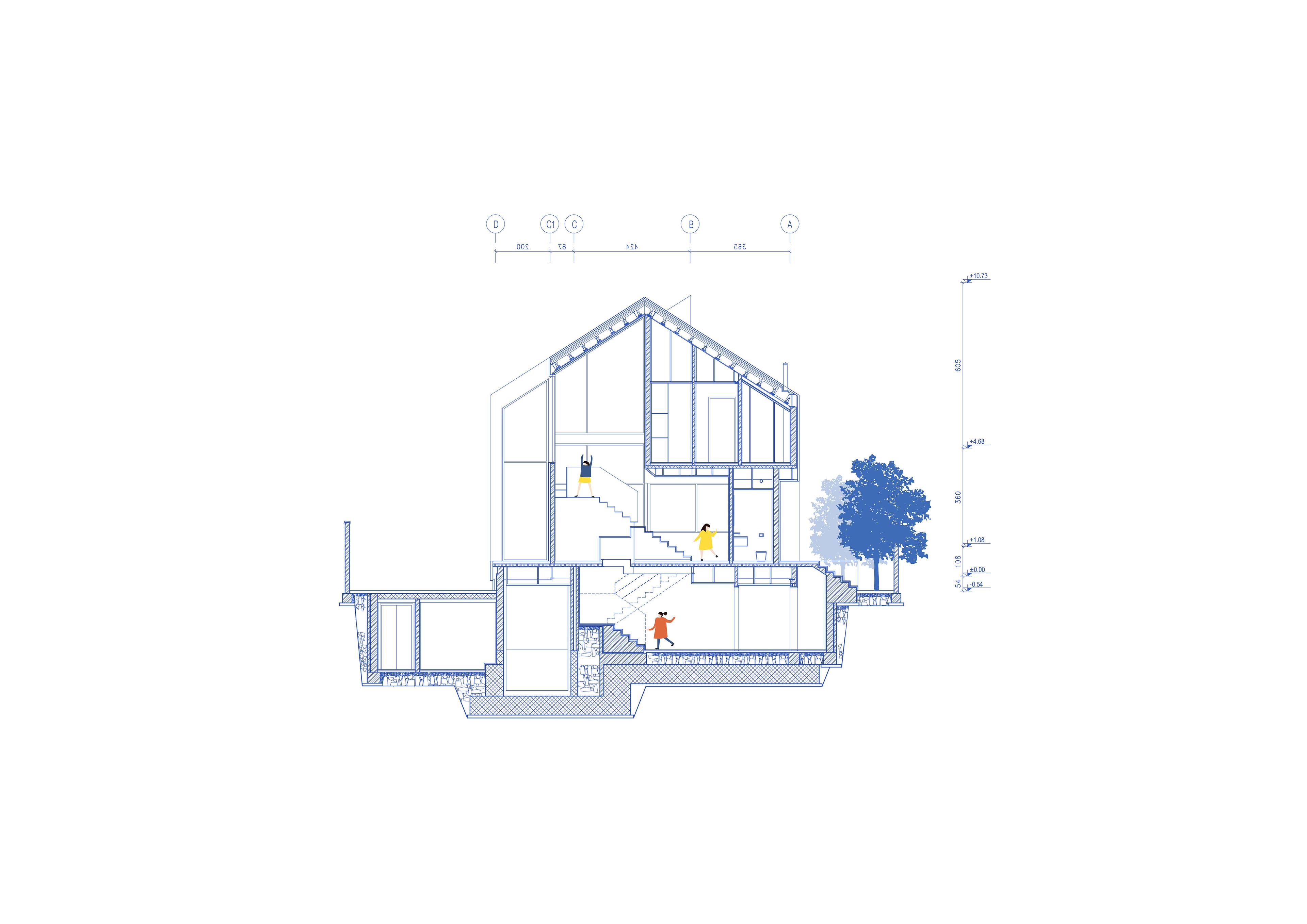

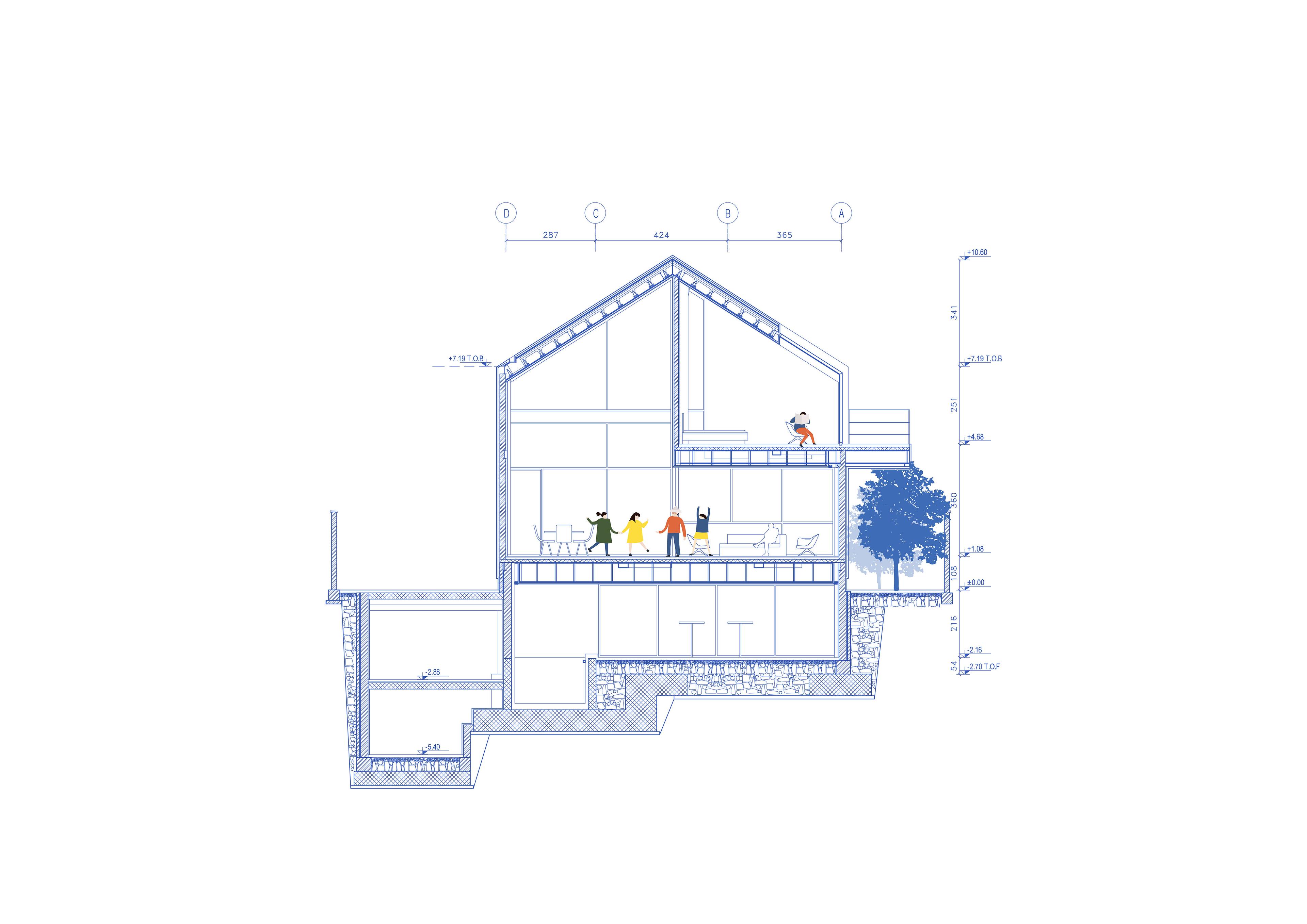

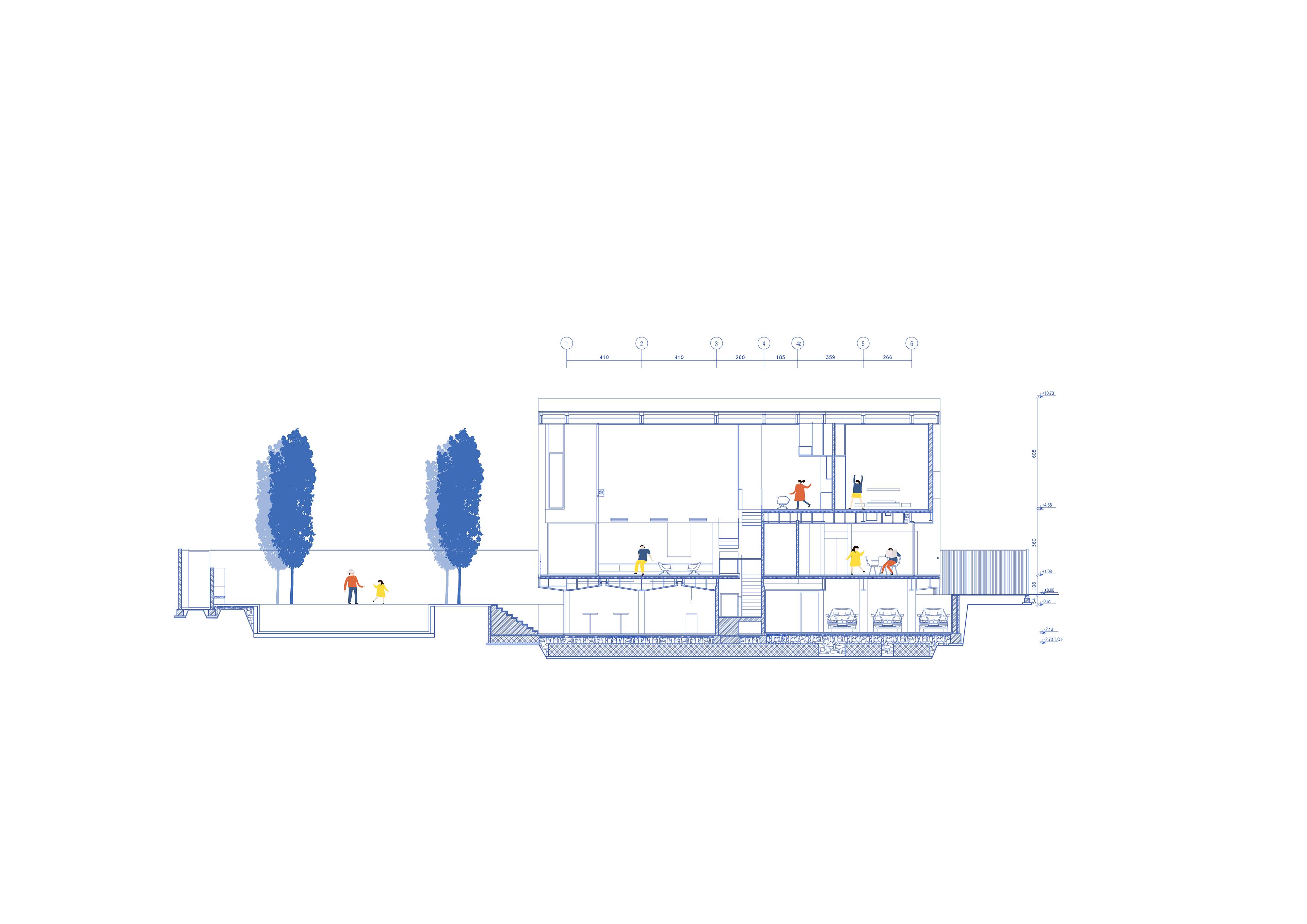

Section a A.re
Section B B.re
Section C C .re

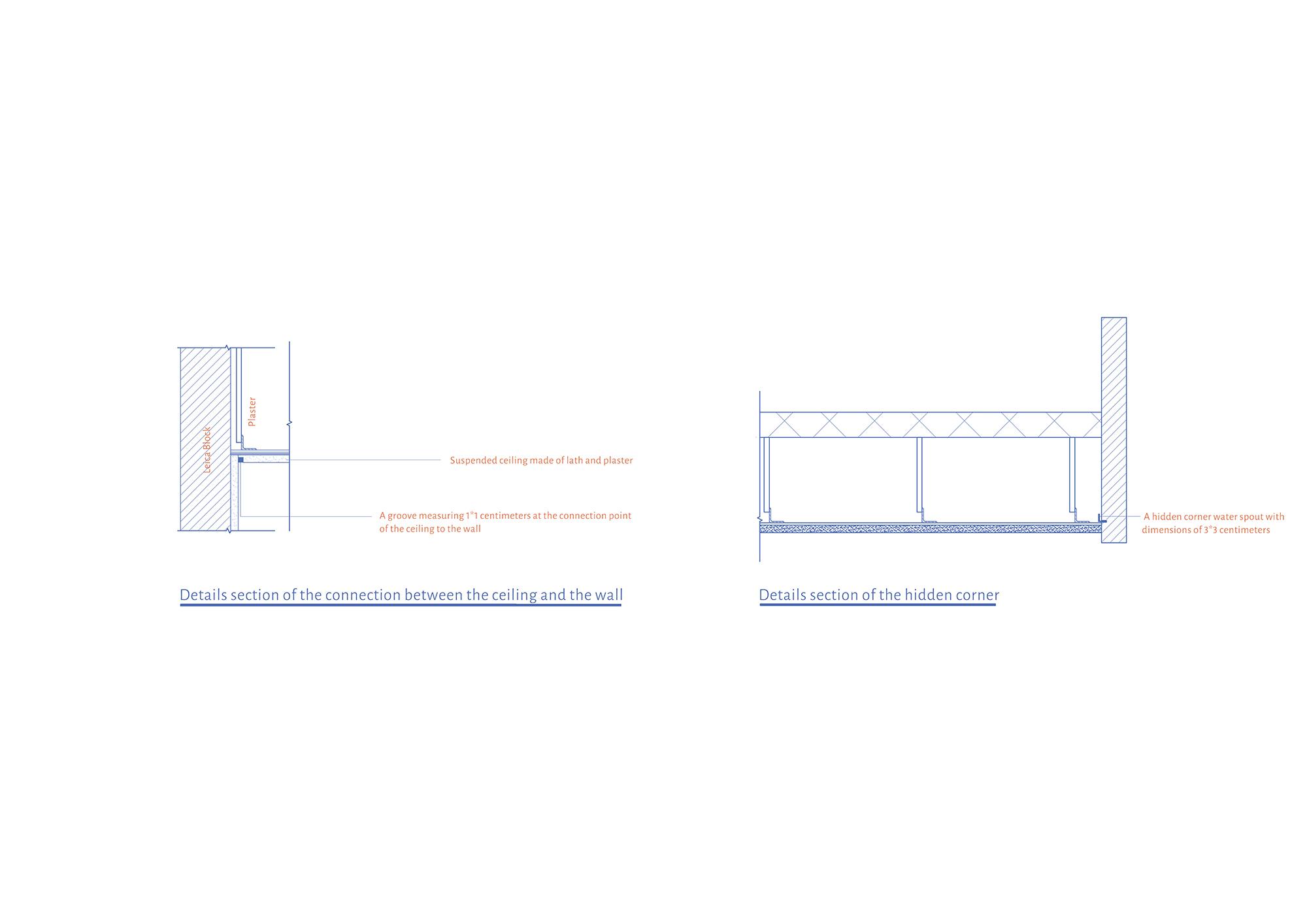

1برش نبشی و اتصال سقف به دیوار (انگلیسی)

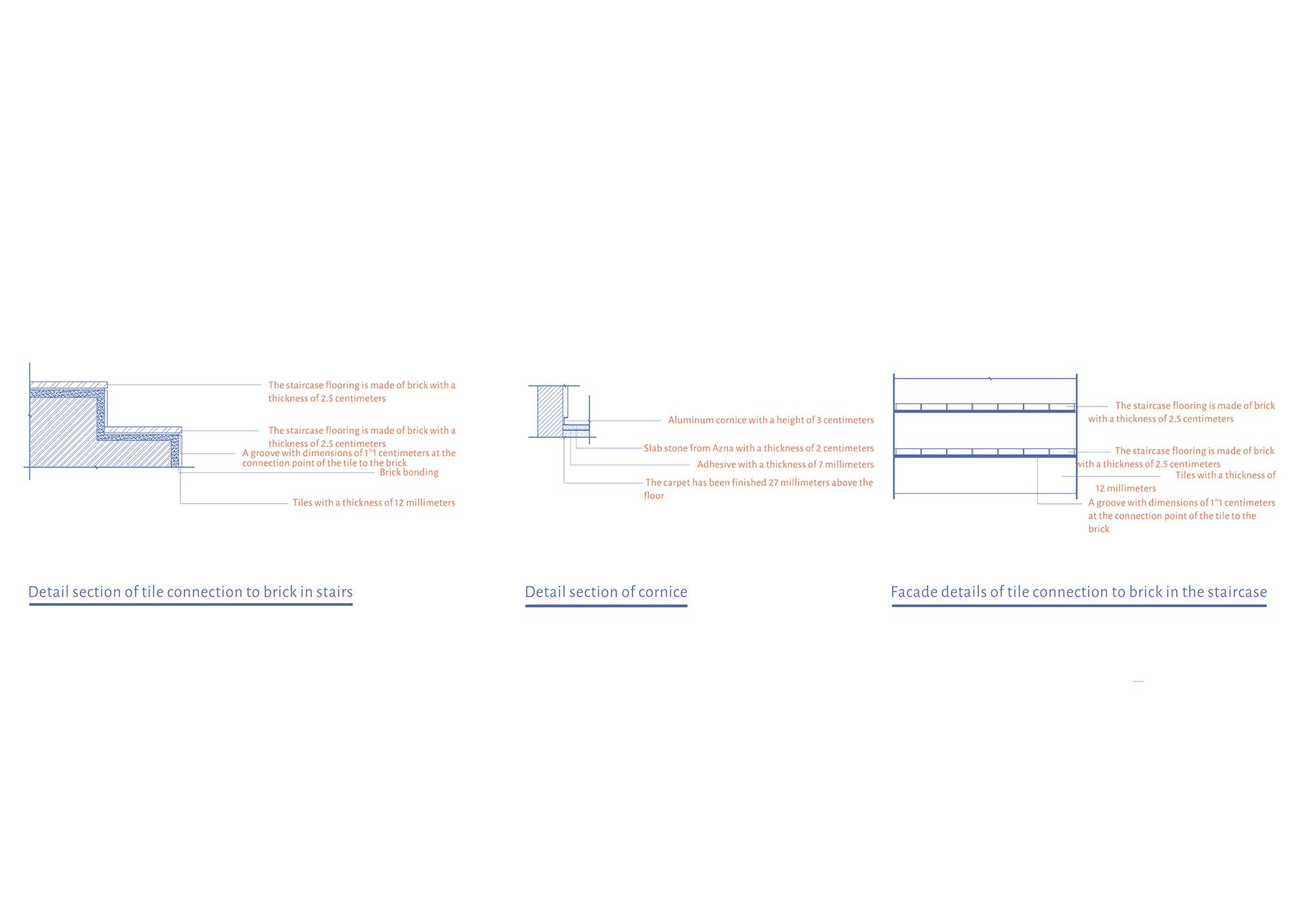

1جزییات قرنیز و پله انگلیسی

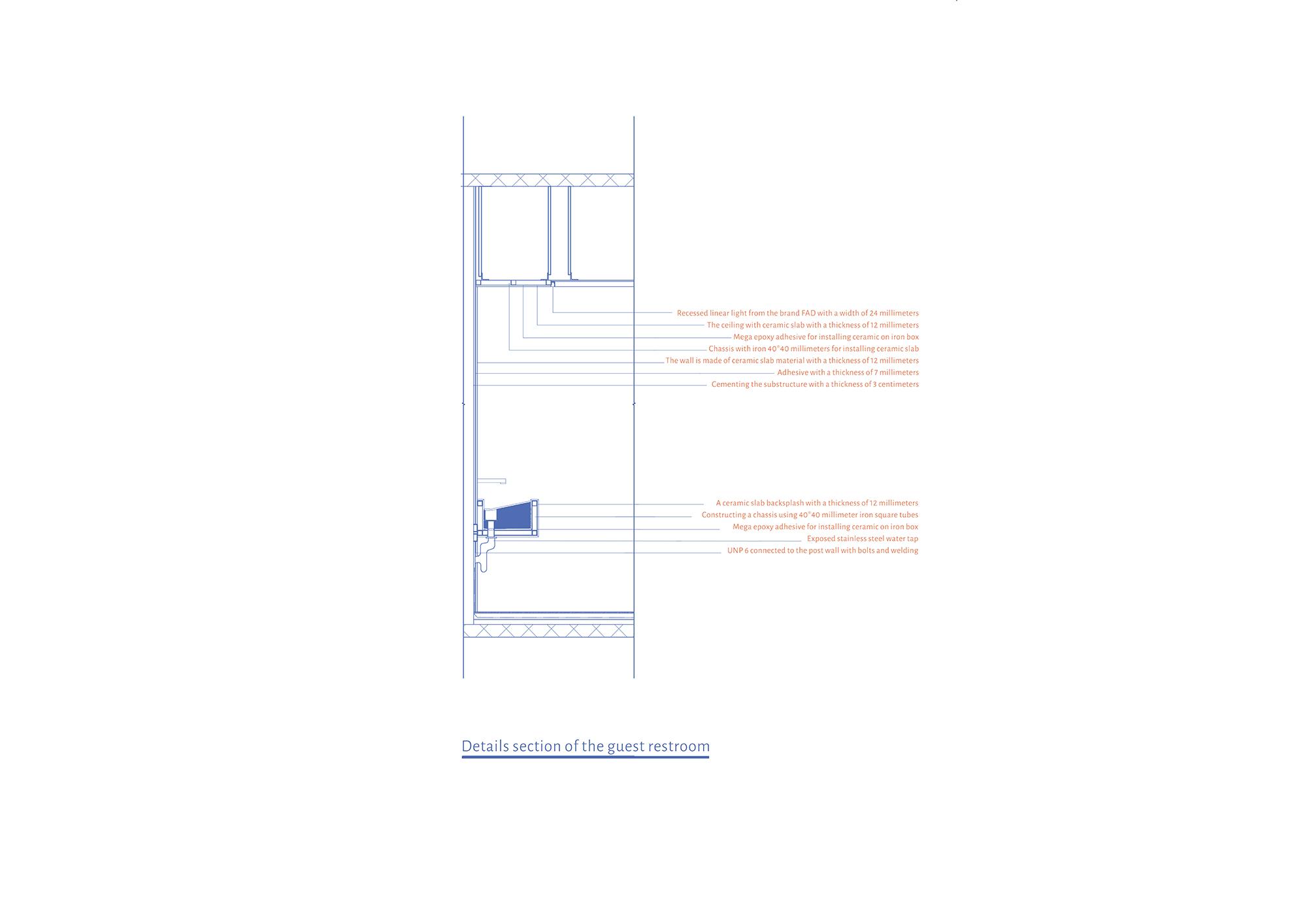

برش جزییات سرویس مهمان انگلیسی1

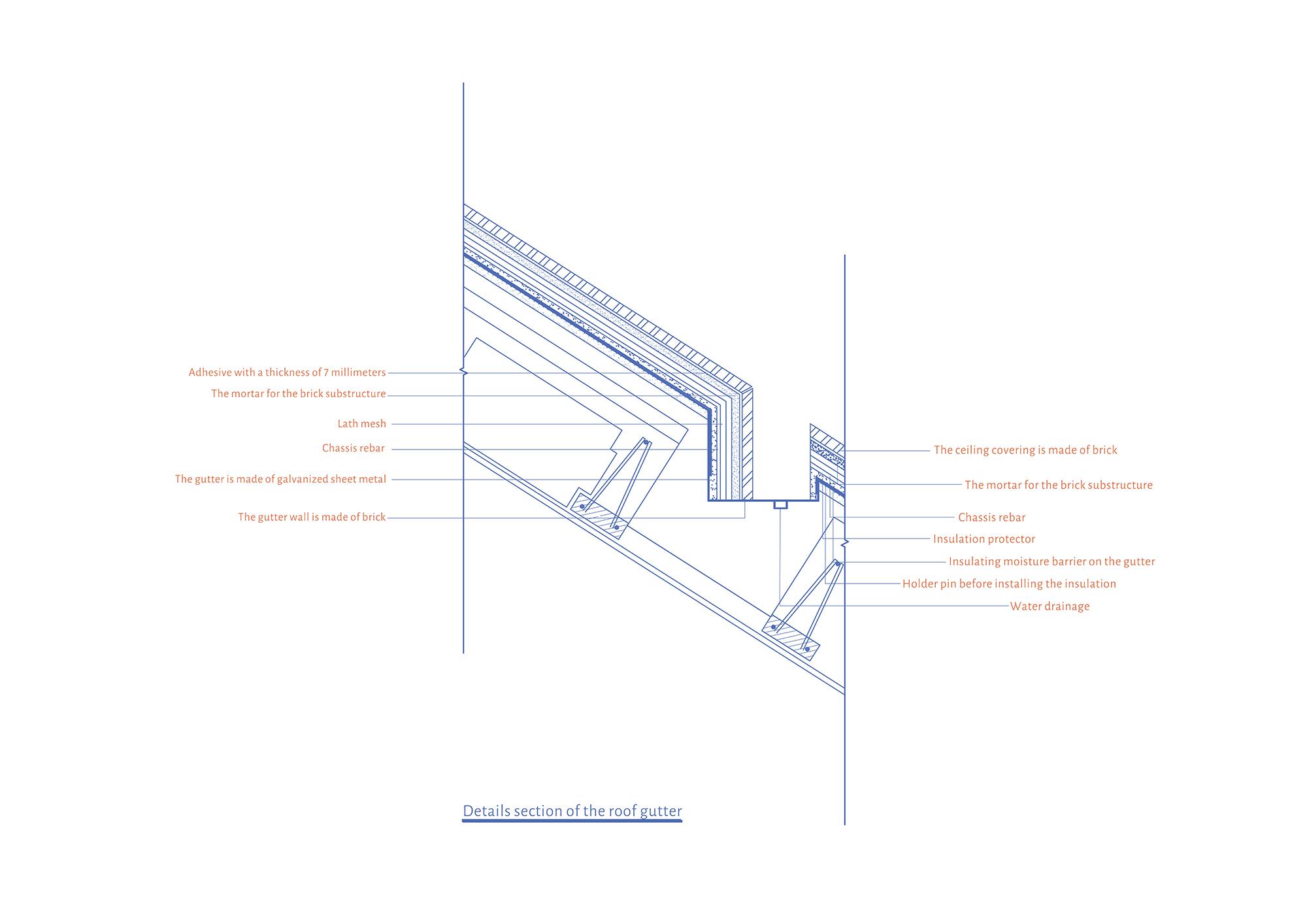

جزییات گاتر بام انگلیسی1
